Wilson has
discontinued support of these parts, When sold out they
are gone forever.
STATUS
DESCRIPTION
INCLUDES
PRICE EACH
W1000 HARDWARE BAG UPC #: 0 20126 90913 1
880-901000
WEATHER CAP, PL259 ADAPTOR, HEX KEY
$15
W1000/W5000 MAGNET
MOUNT UPC #: 0 20126 90916 2
880-910010
MAST, SET SCREWS, STAR WASHER, PANEL NUT,
MYLAR SET, RUBBER COIL WASHER
$16
SOLD OUT
W1000/W5000 ROOF MOUNT
UPC #: 0 20126 90917 9
880-910020
MAST, SET SCREWS, PANEL NUT, RUBBER COIL
WASHER, STAND OFF, ROOF GASKET
$16
SOLD
OUT
W1000/W5000 TRUNK
MOUNT UPC #: 0 20126 90918 6
DOES NOT COME WITH CHROME TRUNK LIP "880-909096" shown in
chart
below ...I don't know why...I guess because it is a "repair kit", not a -"make a trunk
mount from a roof top" kit...
880-910030
MAST, SET SCREWS, PANEL NUT, RUBBER COIL
WASHER, STAND OFF, TRUNK GASKET
$16
SOLD
OUT

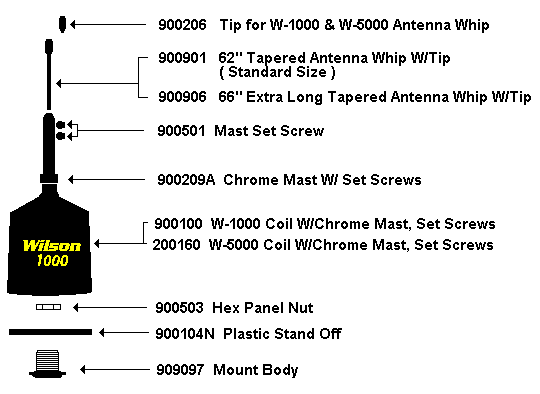

Wilson Base Load Parts
Identification

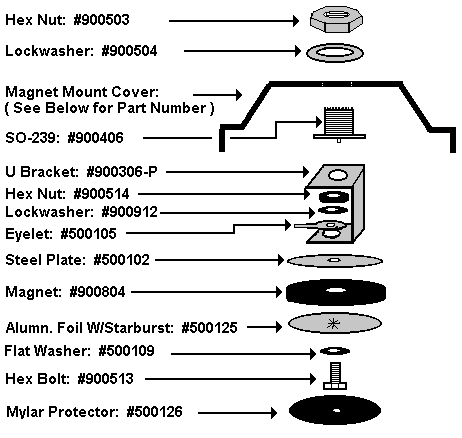

Magnetic Mount Parts
Identification
Call to order yellow
highligted items:
Parts listing below is for
information only
and individual parts shown are not sold separately.
PART #
PART DESCRIPTION
Call to order
880-900100
Coil W/mast & Set Screw (BK or WH)
Call to order
880-900501
10/32 X 1/8" Antenna Mast Set Screw
880-900701
Rubber Coil Washer Base (O-Ring)
$17.99
880-900209
Chrome Mast with Set Screws.
Call to order
880-900901
62" W-1000
and W-5000 Tapered Antenna Whip W/Tip
Call to order
880-900906
66" W-1000 and W-5000 Extra Long Tapered Antenna Whip W/Tip
Call to order
880-900801
Allen Wrench for MOST of the Wilson antennas
Parts listing below is for
information only
and individual parts shown are not sold separately.
PART #
PART DESCRIPTION
880-900104-N
Plastic Stand Off (BK or WH)
Call to order
880-900502
Trunk Mount Set Screw
880-900706
Roof Mount Gasket
880-900704
Trunk Mount Gasket
880-909096
Trunk Lip
880-500127
Magnet polyester bottom cover set (2 pc)
880-909091
Complete Roof Top Mount Assembly (BK or WH)
unavailable. Still some W5000 left HERE.
