PNI-HP7120 with Extra 48 Antenna

Orders with radio work are delayed 3 - 14 days

Download Manual

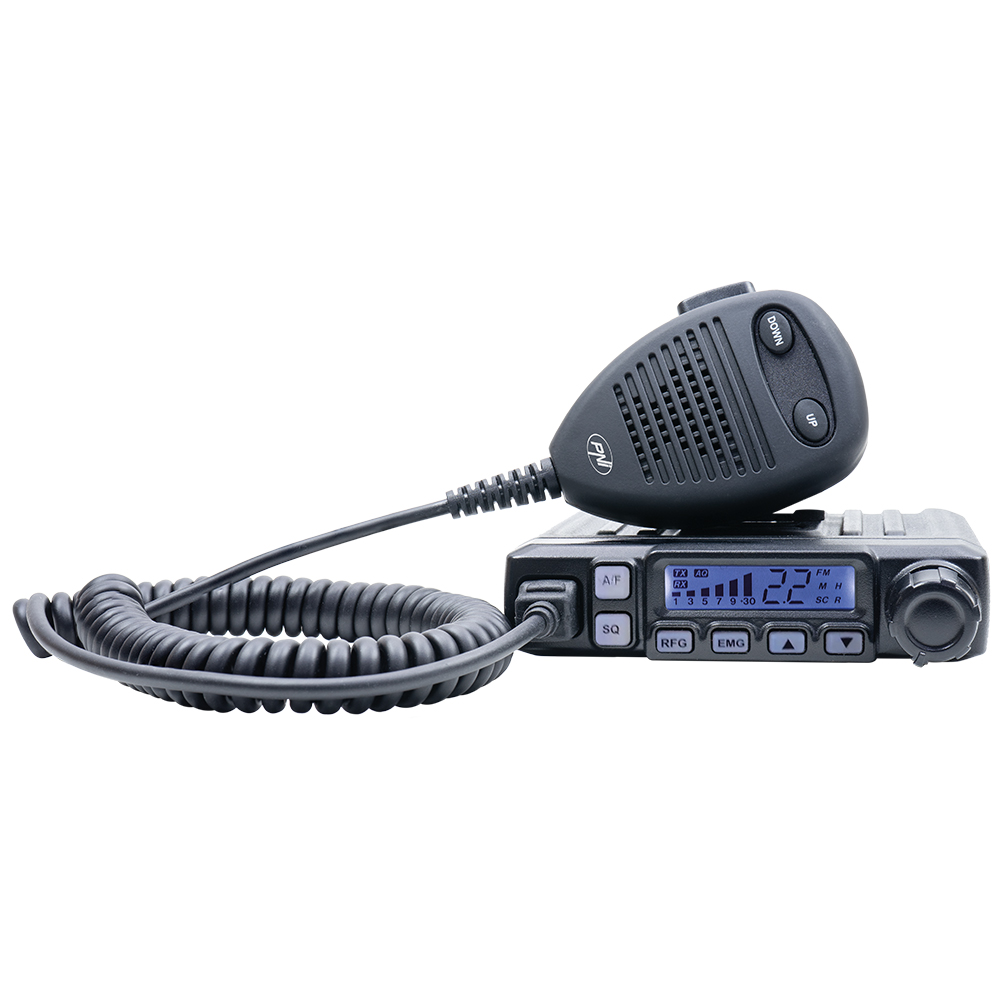

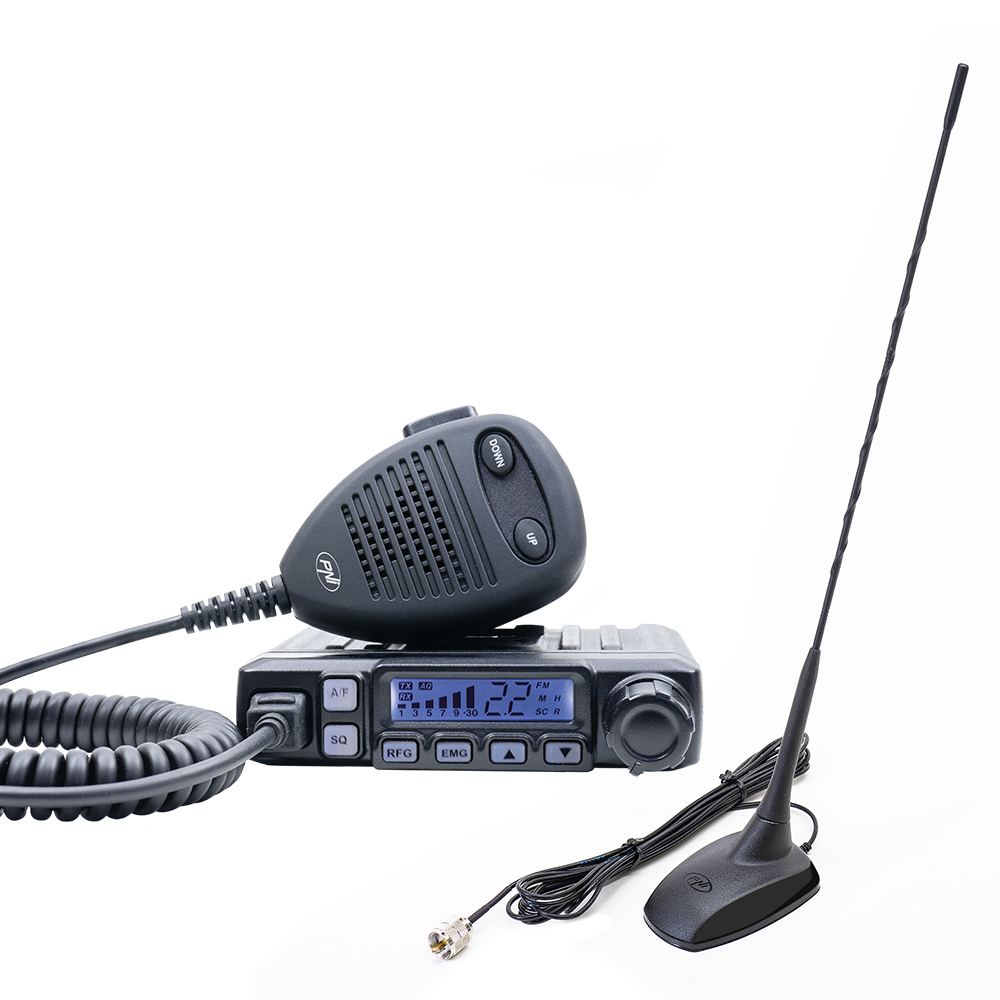

CB PNI Escort Radio HP 7120 ASQ, RF Gain, 4W, 12V and CB PNI Extra 48 antenna with magnet included, 45cm, SWR 1.0

Small size The small size (only 110 x 120 x 25 mm) enables the station to be positioned even in the smallest of spaces without the need for a real installation, as in the case of a classic CB.

Double squelch, adjustable and digitally automatic The PNI Escort HP 7120 is equipped with a digital automatic squelch. The manual and automatic Double Squelch module offers settings on 28 and 9 levels together with the RF Gain function for a finer adjustment of the reception.

Working frequency 26 - 28 MHz
AM/FM

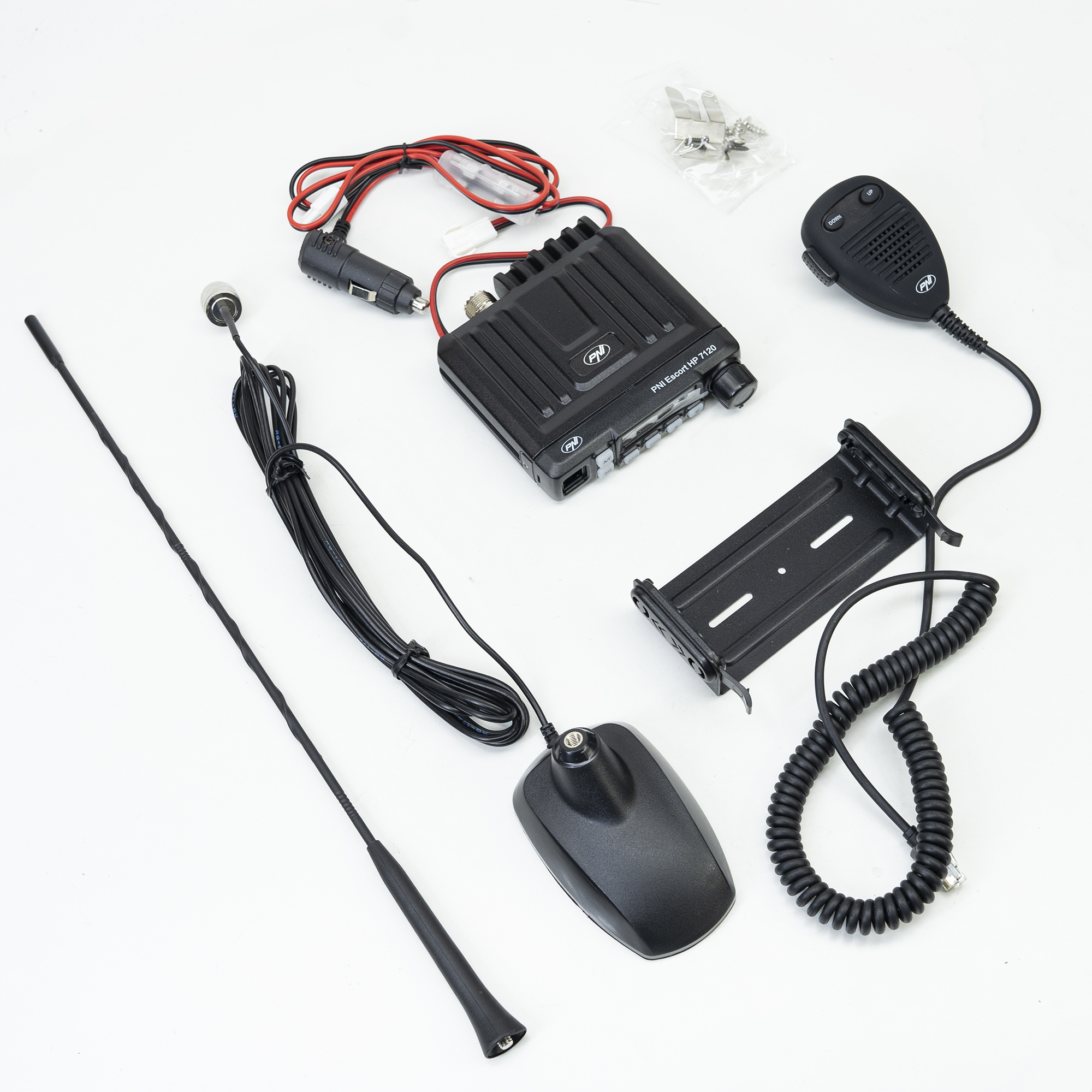

HP 7120 radio station and an Extra 48 antenna with magnet
28 SQ levels,
9 RF gain levels and
9 digital ASQ levels.

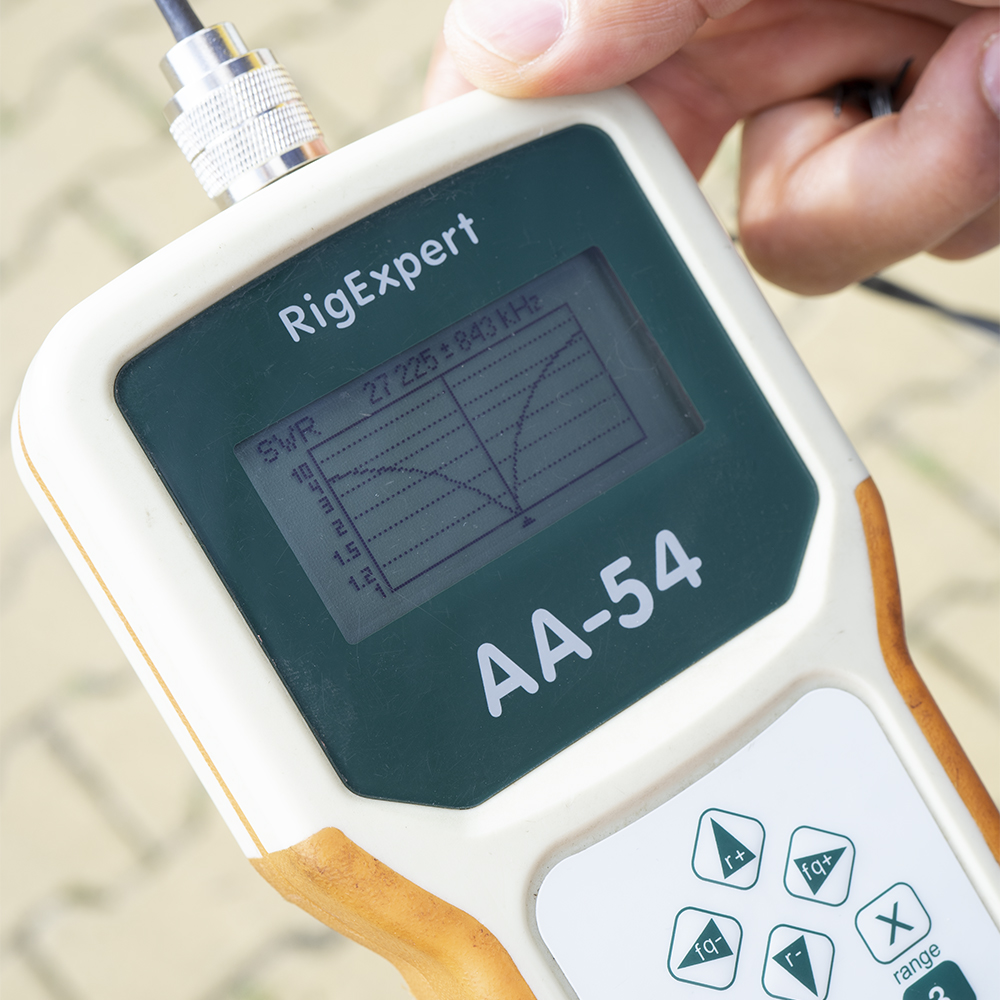

Minimum SWR in the center of the band
less than 1.2:1
Antenna Length 54cm (antenna)
impedance 50 Ohm
Antenna Material Fiberglass
Connector PL259 Cable length 4m
Polarization: vertical
Operating temperature -26 ° C ~ + 60 ° C
Warranty : 24 Months (Manufacturer)

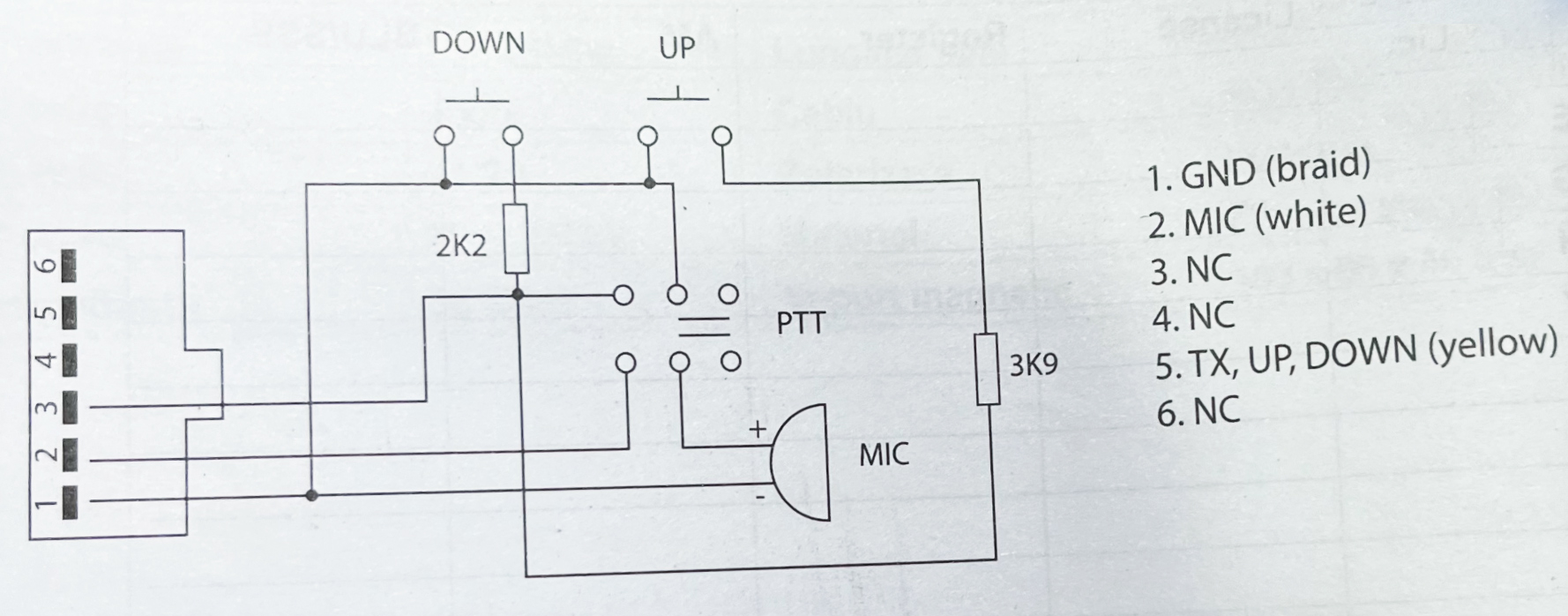

Microphone Wirring diagram

The HP 7120 PNI Escort multi-norm station brings a novelty in the field of CB. Depending on the country you are traveling to, first select the frequency table and then the country-specific rule . Carefully consult the local legislation and set the station (maximum allowable emission power) accordingly.

Escort HP7120 Radio +

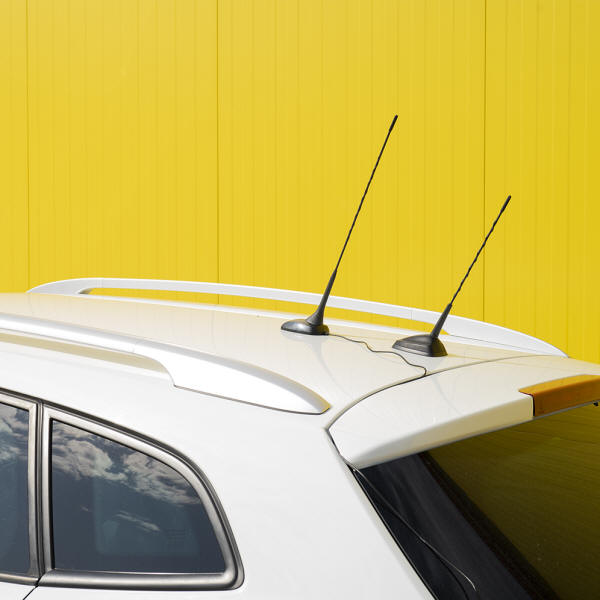

Extra 48 Antenna

$99^.50

Optional Accessories

Dead Key

Tune-up. perform a tune-up to radio to
optimize power, audio and performance $19

Wireless Bluetooth Microphone.
(The microphone and dongle can communicate wirelessly with the CB radio station up to a maximum distance of 10m ) $39

small speaker Add a Small External Speaker
(plugs into back of the radio for improved sound) $12

Large Speaker Add a Large External Speaker
(plugs into back of the radio for improved sound) $25

Tuned up values on these watt meters

Dosy Bird RMS *Bird 43P

AM / FM 5w 5w 5w

PEAK AM 14w 6w 20w

* The most informative meter and the one we use.

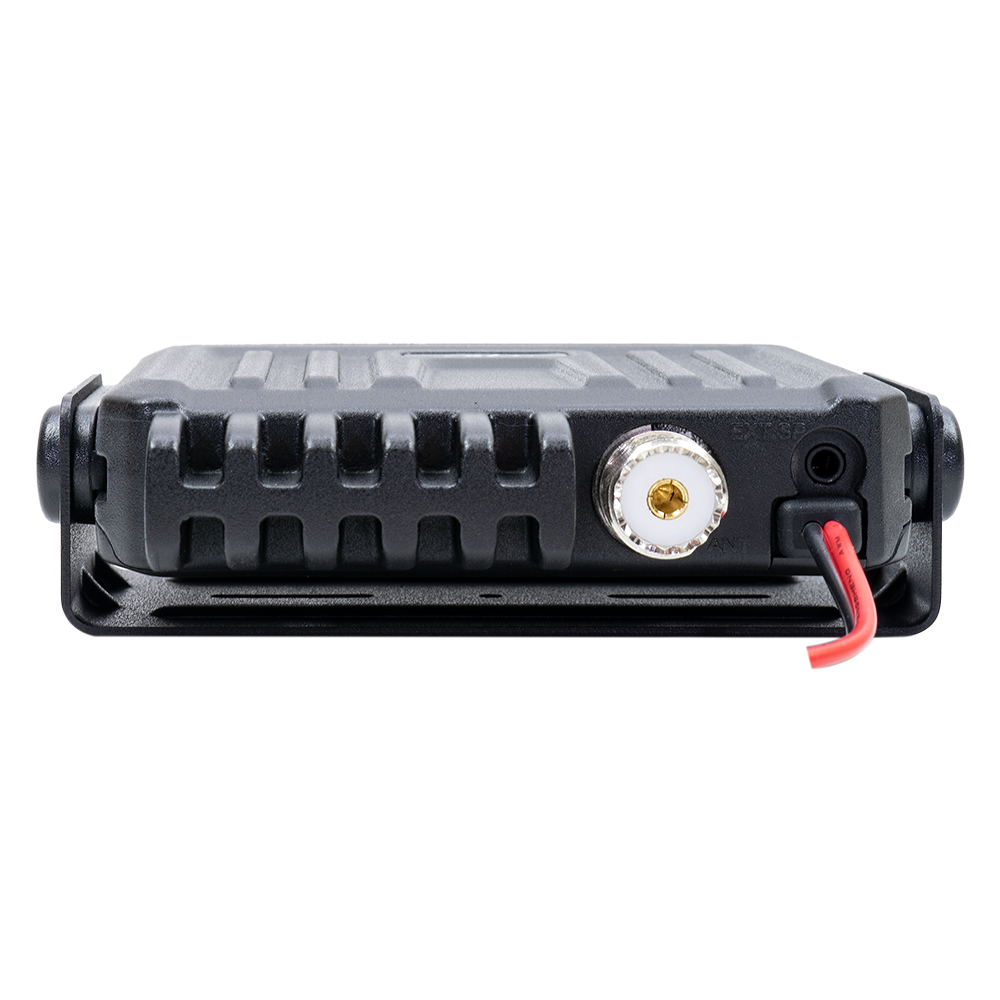

General features of the radio station

Broadband type	AM-FM
Frequency	26.965-27.405 MHz
channels	40 AM / FM
Microphone type	RJ45 plug
Power speaker audio	1 W
Sensitivity (20dB SINAD)	greater than 1 µV (AM / FM)
Emission power	4 W
Modulation	80 - 90%
Mounting 1 DIN	Yes
feeding	12 V
Consumption	2A maximum
Dimensions / Weight	110 X 120 X 28/385 g
Special features of the radio station
Adjustable ASQ	Yes, 9 levels
SQ - Squelch	Yes, 28 levels
Scan channels	Yes
RF Gain	Yes, 9 levels
Lock the keyboard	Yes
Multicolored screen	Yes
Emergency channel button 9/19	Yes
Operating temperature	-26 C - +60 C

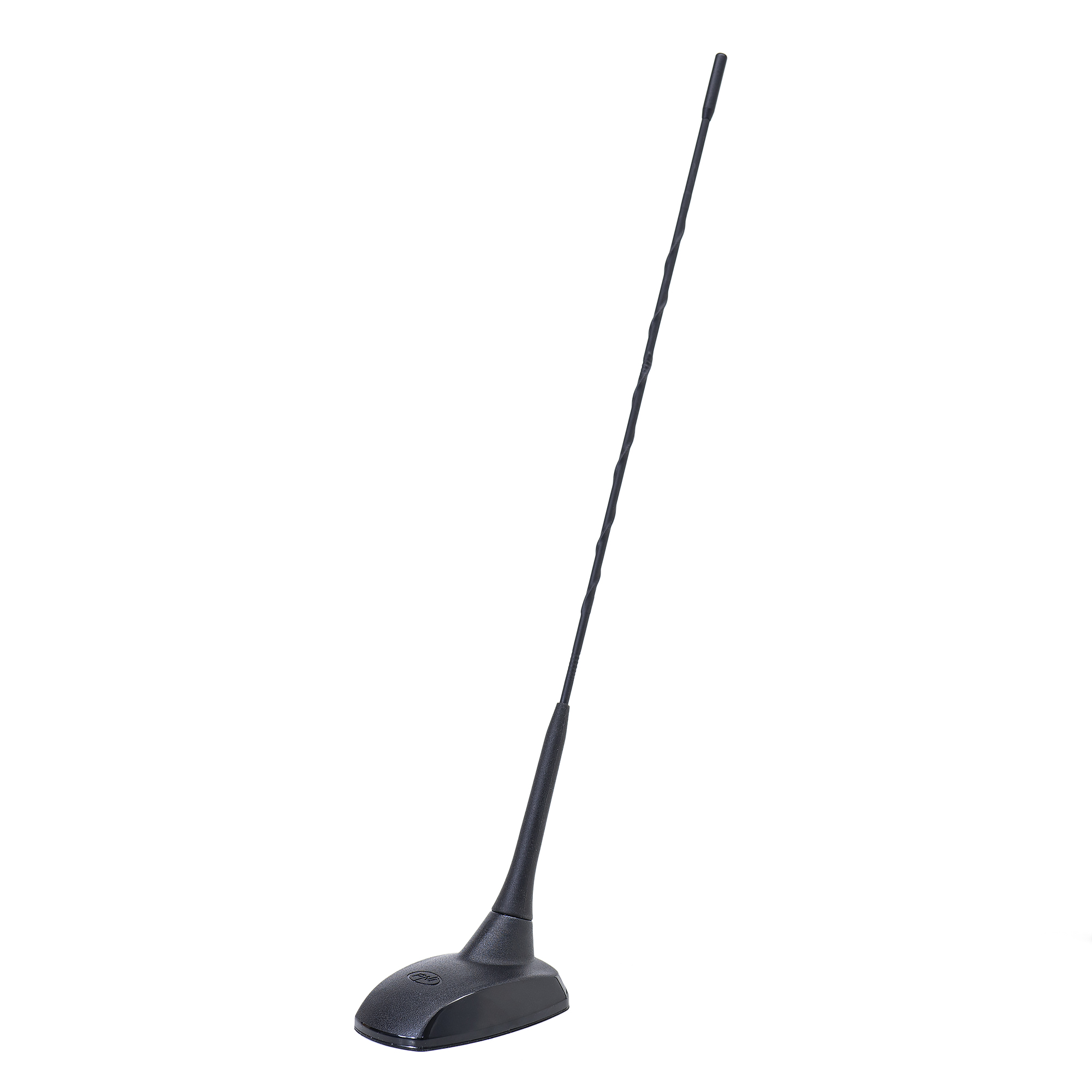

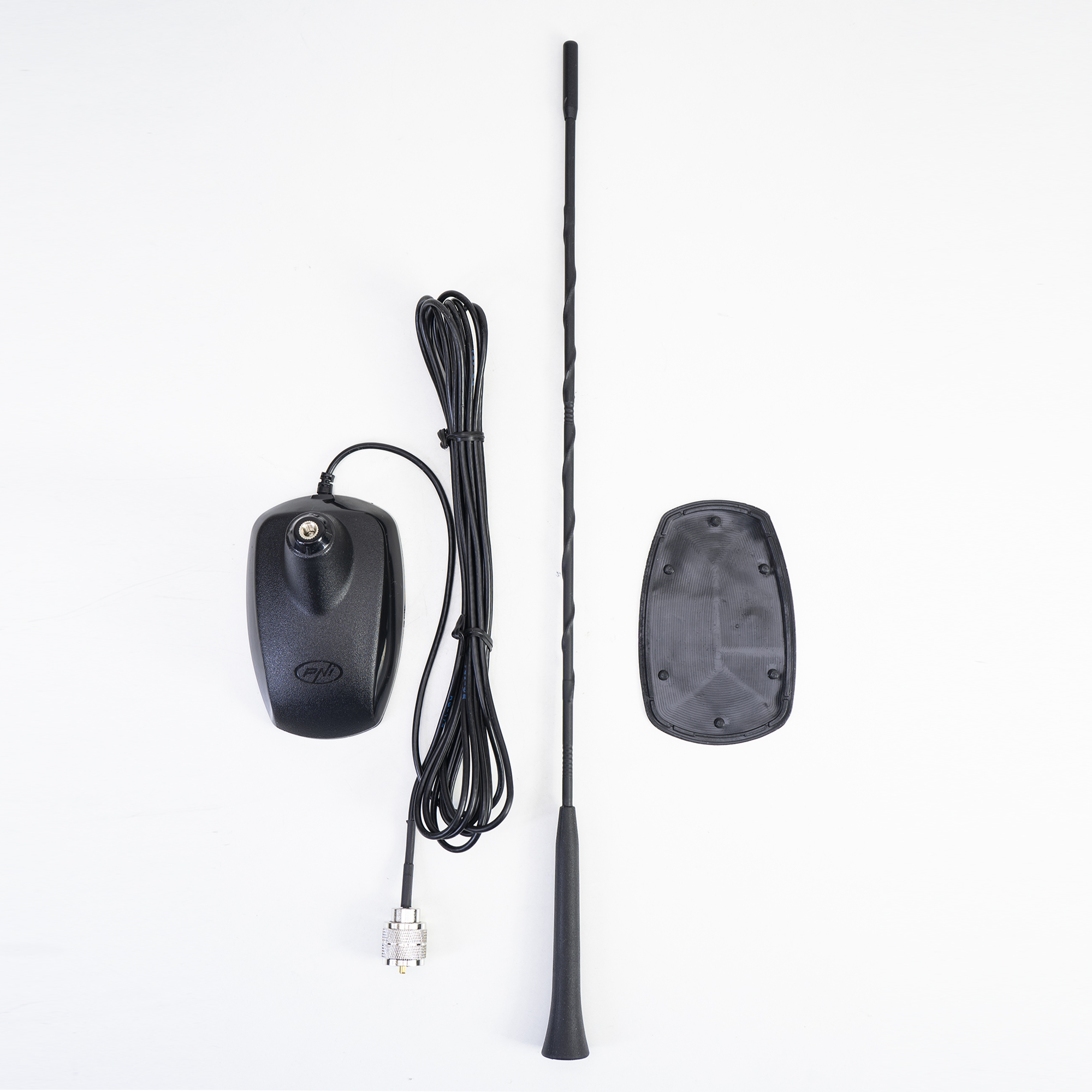

Features radio antenna
Working frequency	26 - 28 Mhz
Maximum applied power	150 W
Minimum SWR in the center of the band	1.0
Antenna length	45 cm
Working distance	10 km
impedance	50 Ohms
Material	Fiber glass
Tip connector	PL259

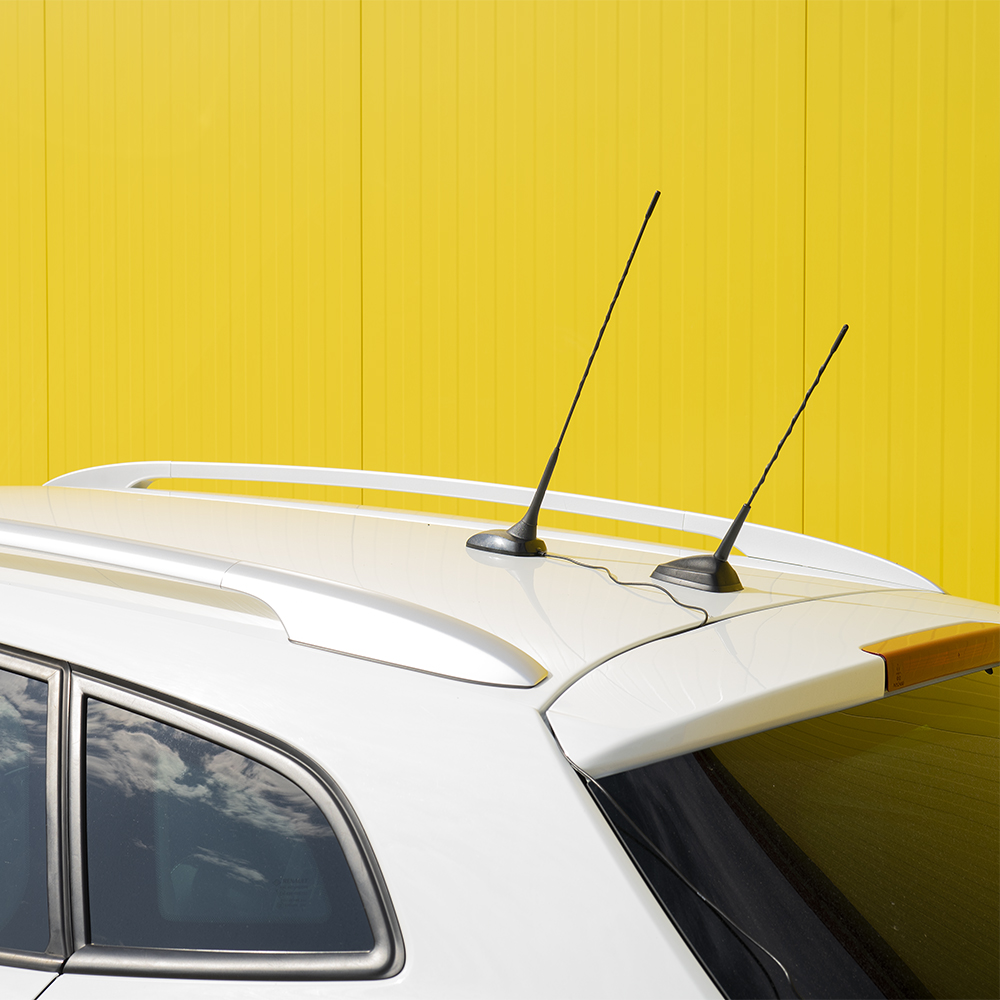

Magnetic base included	Yes
Magnetic base diameter	103 x 66 x 40 mm
Cable length	4m
