CHARLES GIZMOTCHY

GIZMOTCHY
Beam Antenna
Dual Polarity
 10,11,6 and 2 METER

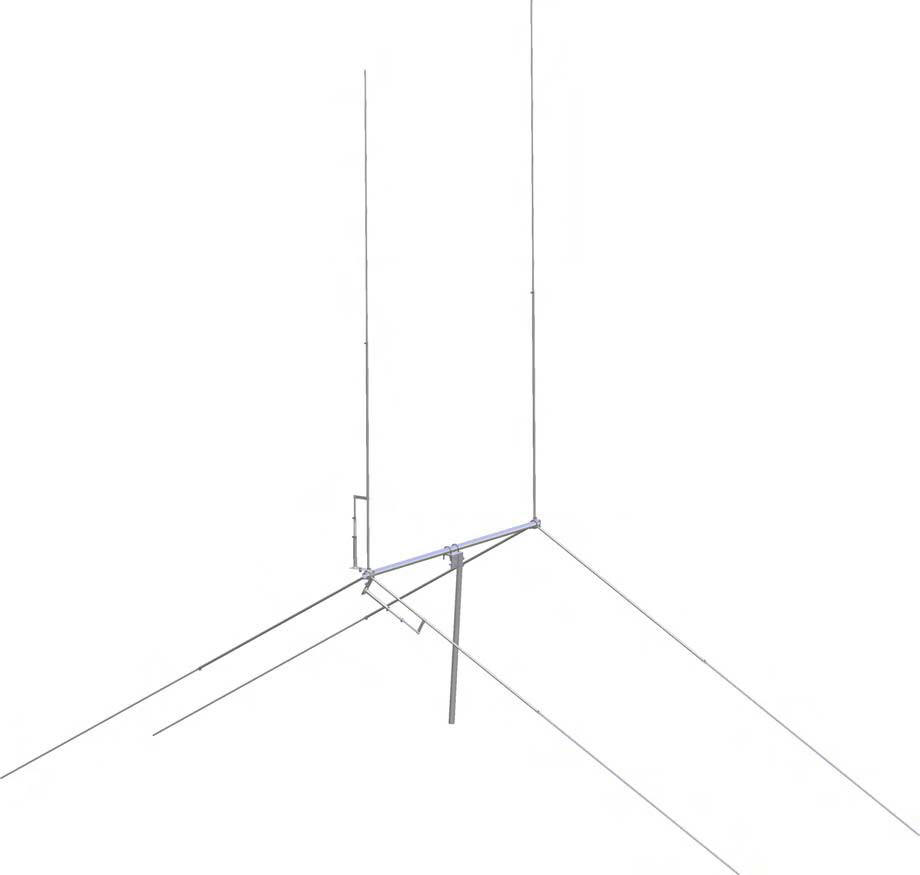

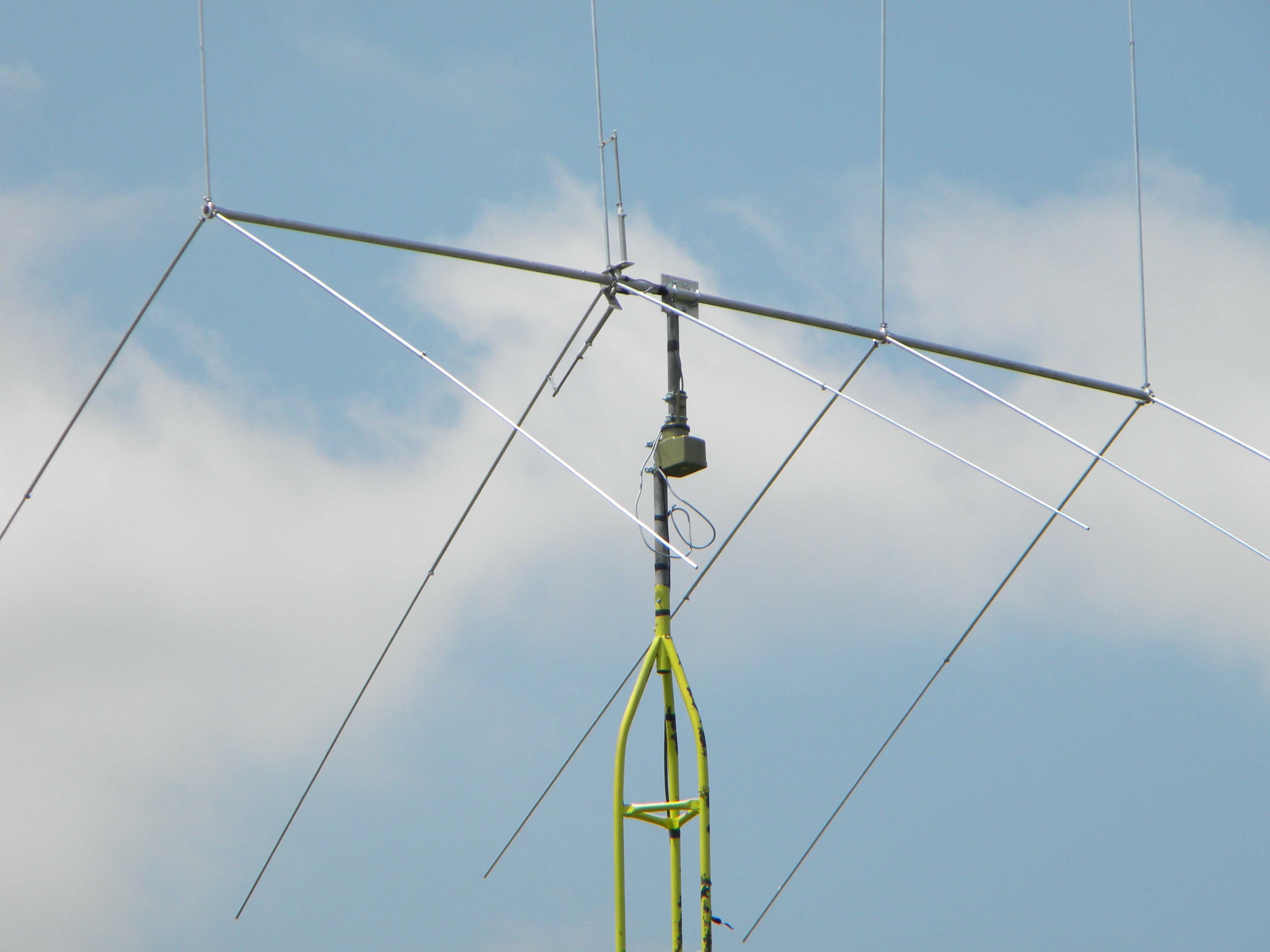

G21 Assembly

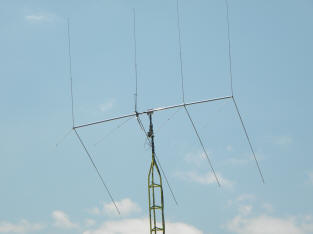

 G31 Assembly
 Power Booster Assambly

Power Booster Assambly

All Gizmotchy antennas are made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy.

Model Buy Description  Weight Shipping
 Carton		 Price
10/11 Meter Antennas (CB Radio Band)
G21

SOLD OUT
 2 Element Gizmotchy W/1,500 Watt Gammas 10 65" X 5" X 4" $284
G25

SOLD OUT
 2 Element Gizmotchy W/5,000 Watt Gammas 10 65" X 5" X 4" $298

G31

SOLD OUT
 3 Element Gizmotchy W/1,500 Watt Gammas 14 65" X 5" X 4" $357
G35

SOLD OUT
 3 Element Gizmotchy W/5,000 Watt Gammas 14 65" X 5" X 4" $386

G41

SOLD OUT
 4 Element Gizmotchy W/1,500 Watt Gammas 18 65" X 5" X 4" $435
G45

SOLD OUT
 4 Element Gizmotchy W/5,000 Watt Gammas 18 65" X 5" X 4" $462

G51

SOLD OUT
 5 Element Gizmotchy W/1,500 Watt Gammas 22 65" X 5" X 4" $505
G55

SOLD OUT
 5 Element Gizmotchy W/5,000 Watt Gammas 22 65" X 5" X 4" $520

G61

SOLD OUT
 6 Element Gizmotchy W/1,500 Watt Gammas 26 66" X 6" X 6" $569
G65

SOLD OUT
 6 Element Gizmotchy W/5,000 Watt Gammas 26 66" X 6" X 6" $585
BL8
8 Element Gizmotchy W/5,000 Watt Gammas
BIG LEAUE SERIES		   $1,025

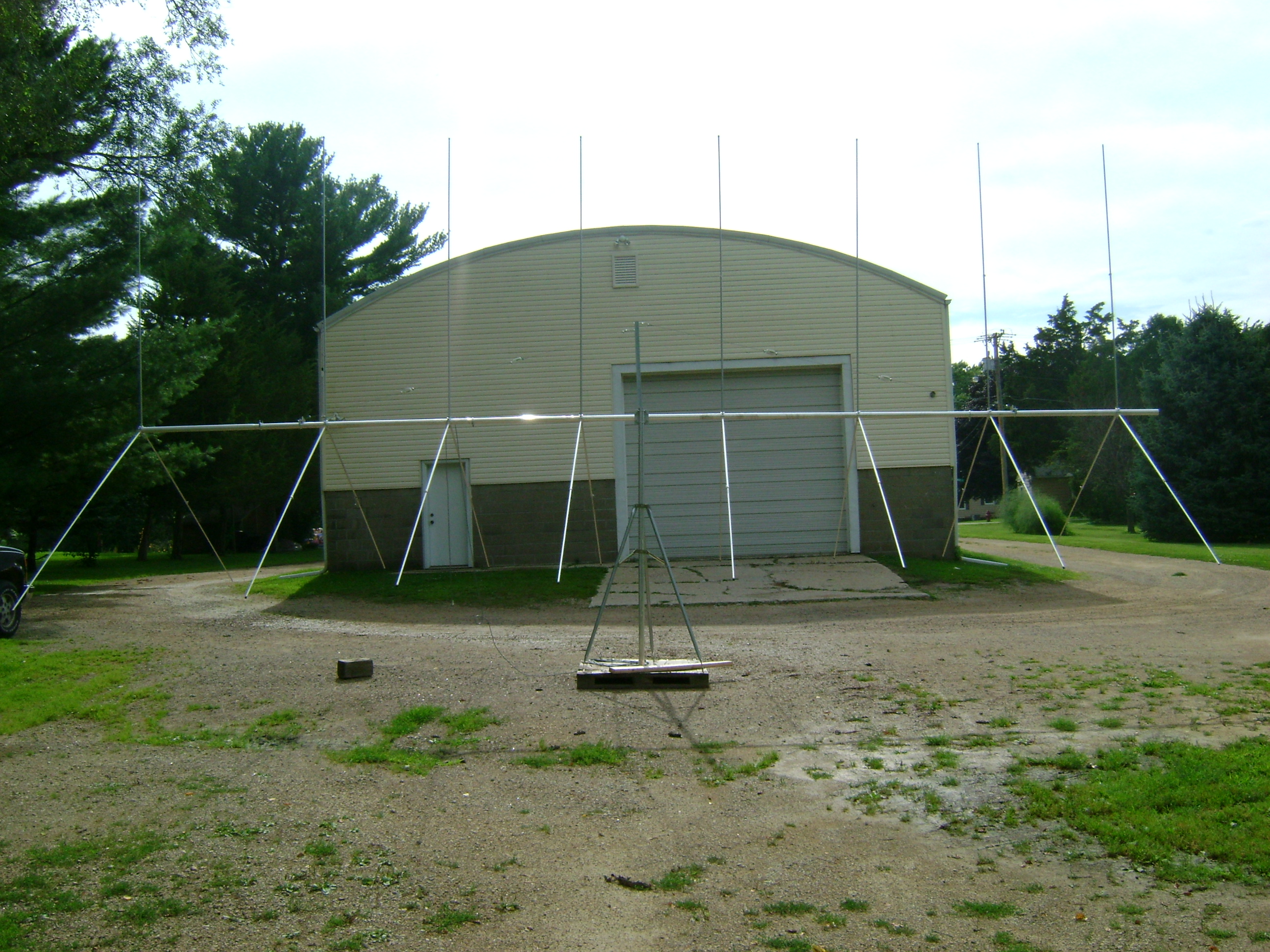

  The BIG LEAUE SERIES has a 29' long boom made out of 6061-T6 aircraft aluminum tubing. The boom has a two inch outside diameter and all elements will be larger diameter than the original Gizmotchy elements. The Big League Series antennas feature a  heavy duty 1/2" thick  x 3" OD machined aluminum hubs that fit on the 2" boom.

GPB

SOLD OUT
 Gizmotchy� Power Booster
 Each Power Booster adds one more
 element to your antenna. 		4 66" X 4" x 2" $122
SK12

SOLD OUT

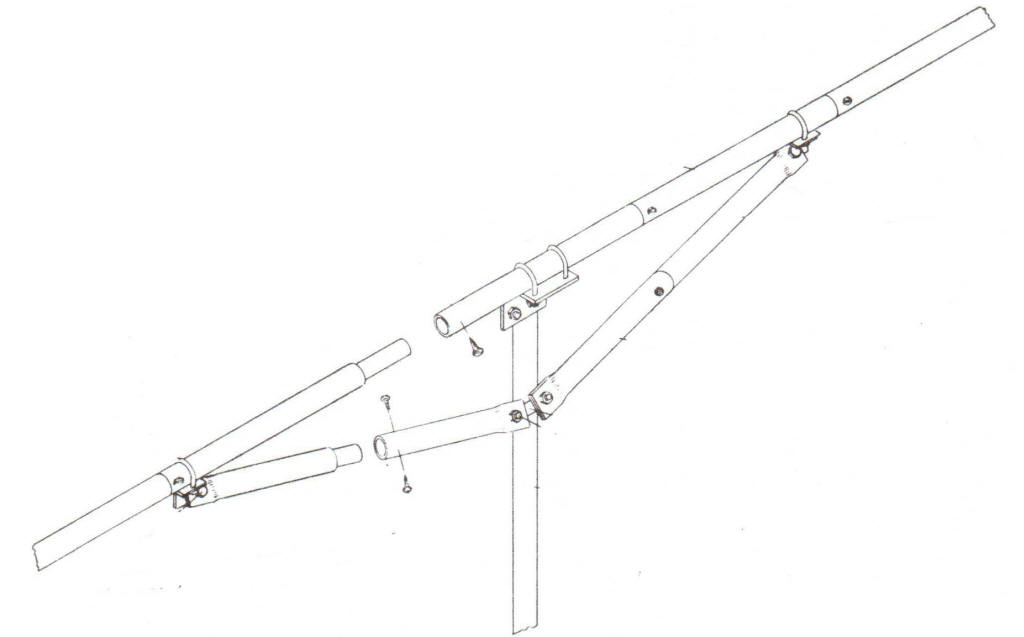

12' Universal Antenna Support Kit

 8 46" X 4" X 3" $131
SK18

SOLD OUT
 18' Universal Antenna Support Kit  10 46" X 4" X 3" $153
SKE6

SOLD OUT
 6' Support Kit Extenders 4 46" X 4" X 3" $73
G5000V

SOLD OUT
Complete 5000 Watt Vertical Gamma Assembly
(Includes Gamma, Connecting Bracket, and Mounting Bracket):
2 12" x 9" x 2" $53
G5000H

SOLD OUT
  Complete 5000 Watt Horizontal Gamma Assembly
 (Includes Gamma, Connecting Bracket, and Mounting Bracket): 		2 12" x 9" x 2" $53

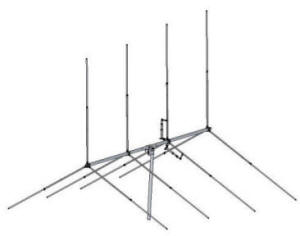

6 Meter Beam Antennas
G641

SOLD OUT
 4 Element Gizmotchy W/1,500 Watt Gammas 14 65" X 5" X 4" $278
G651

SOLD OUT
 5 Element Gizmotchy W/1,500 Watt Gammas 18 65" X 5" X 4" $343
GPB6

SOLD OUT
 Gizmotchy Power Booster 4 65" X 5" X 4" $99
2 Meter Beam Antennas


Gizmotchy
10/11 Meter Power Booster

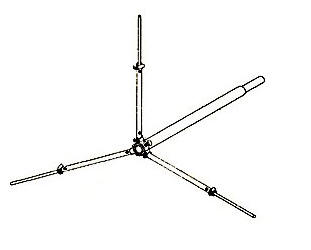

Addition of Gizmotchy Power Boosters to your Gizmotchy 10/11 Meter antenna adds another set of director elements plus a 3.75 extension boom. Doing so adds dB gain, power multiplication, and front-to-back separation. One or more Power Boosters can be added to your existing beam. Each Power Booster weighs approximately 4 lbs.



Gizmotchy Antennas - Home | Facebook

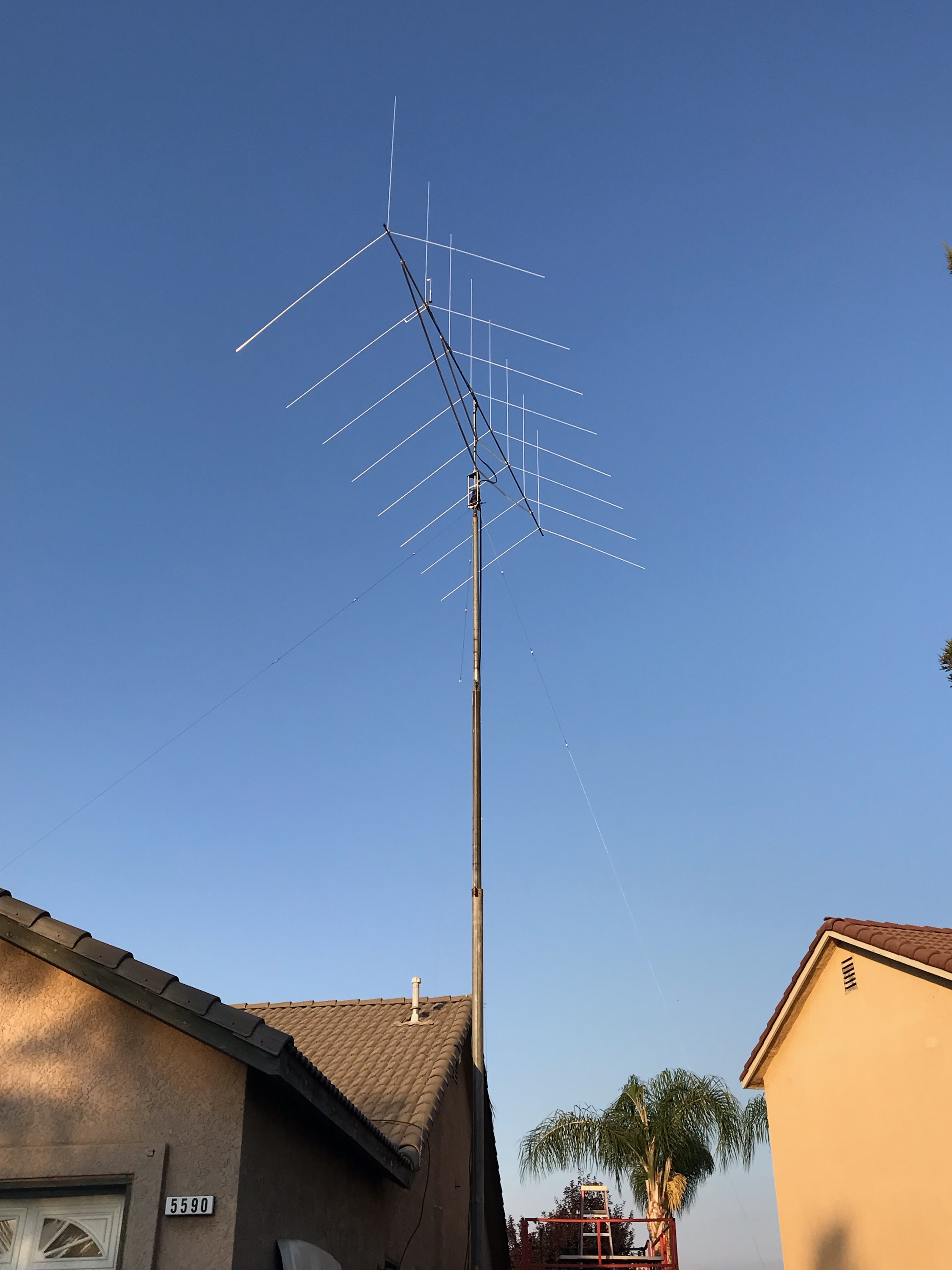

188Fresno_Gizmotchy1188Fresno_Gizmotchy2


New 2022 Shipping Rate


Read an article by S-9 CB magazine years ago

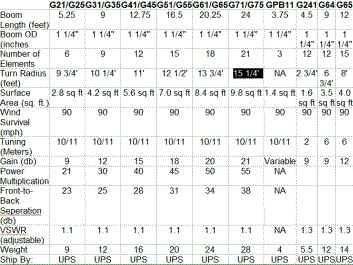

New!Antenna SpecificationsNew!



We would like to start a picture gallery of Gizmotchy antennas in the air at your home.
Please send your pictures to us at bellscb@bellscb.net

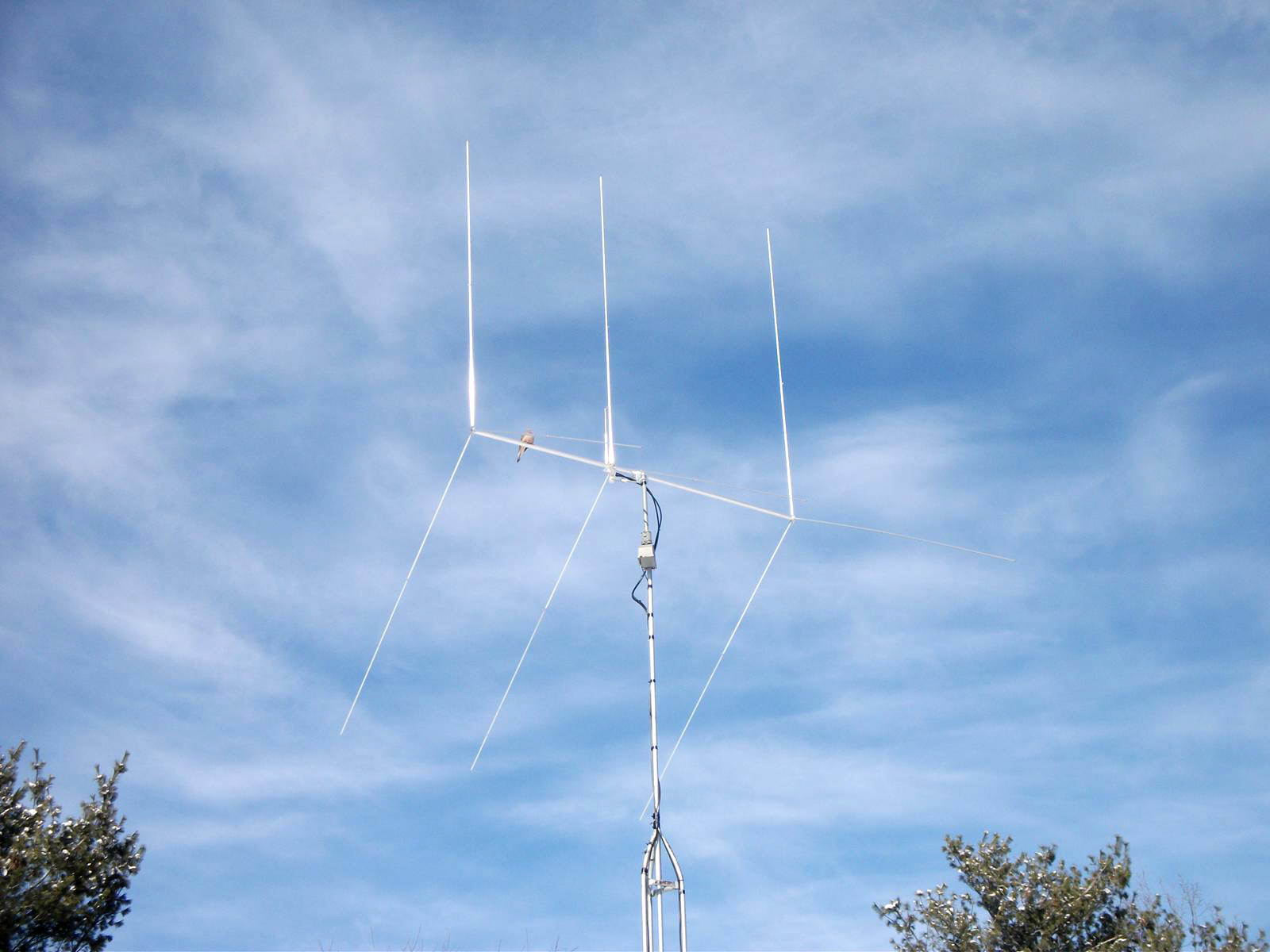

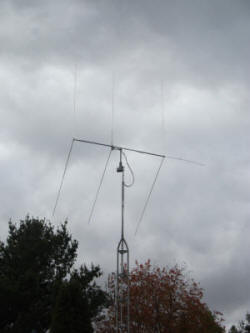

Like this one sent in from
RC 725 in Northern Michigan.



Pictures at Gizmotchy.com







Gizmotchy Quick Facts

Wind survival rating is 90 mph  as long as sheet metal screws (included with beam) are used as recommended.

All Gizmotchy 10/11 Meter Beams use 2 feed lines, can be used in either horizontal or vertical mode with a standard coax switch.

A Gizmotchy Support Kit is recommended for beams exceeding 5 elements.



All Gizmotchy Products are proudly made in the U.S.A.
